Military-grade quality + lifetime technical support, YouNico industrial switches lead the new trend of industrial networks!
Category：
News information
Unico (Wuhan) Industrial Technology Co., Ltd. Introducing the new generation of high-performance industrial switches, specially designed for harsh industrial environments, providing excellent performance and ultimate reliability to help enterprises build high-speed and stable industrial communication networks!
01
Industrial Switch
02
Core Product Highlights
✅ Flexible Adaptability with Dual Models

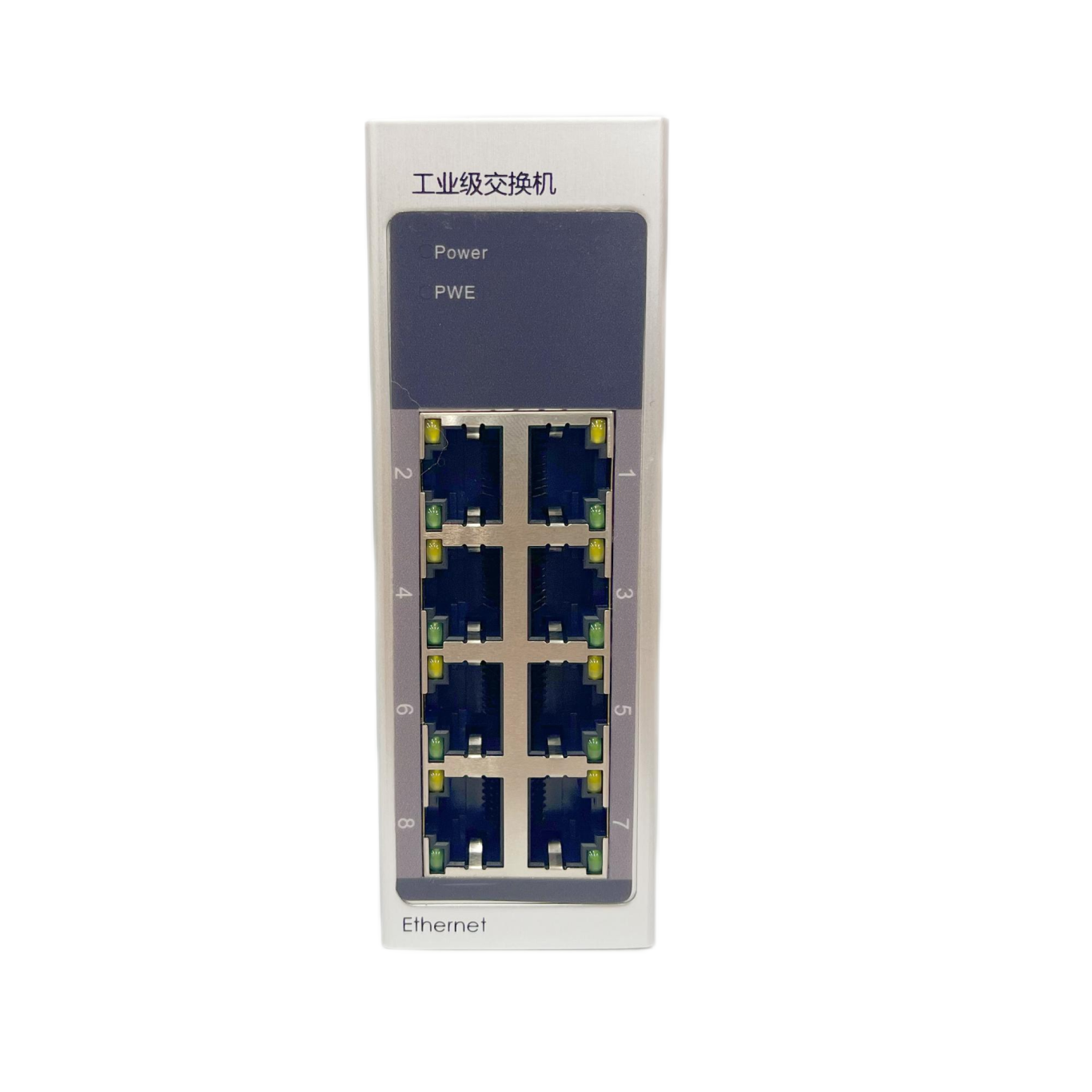

★ 8-Port Industrial Switch ：Meets the needs of multiple device centralized access
★ 5-Port Industrial Switch ：Simplified deployment, lower cost
⚡ Strong Performance Foundation
★ 1.6Gbps high-speed switching capacity + 1.19Mpps packet forwarding rate
★ All ports support 10/100Mbps auto-negotiation , intelligent MDI/MDIX identification
★ Supports Store-and-forward mode , 2K MAC address table depth
🛡️ Industrial-Grade Reliable Design
★ Operating Temperature ：-45℃~75℃
★ Protection Level ：IP20 metal casing
★ Humidity Tolerance: 10%~90% (non-condensing)
★ Wide Voltage Power Input ：DC12V-48V (12V-50V)
★ Double Security Protection ：Reverse polarity protection + overload protection
★ Ultimate Environmental Adaptability ：
🌐 Full Protocol Deep Compatibility
★ Native Support Modbus TCP/Ethernet/IP/PROFINET and other industrial protocols
★ Integrated PROFINET-RT real-time communication technology to create a deterministic industrial network
★ Transparent data transmission capability, seamlessly connecting to existing control systems
🔧 Carefully Crafted Industrial Structure
★ Compact body design (8-port: 100×74×38mm / 5-port: 80×65×24mm)
★ DIN-35mm rail mounting, 3-second quick deployment
★ Dual-color LED status indication (power/port/Link-Act)
03
Unico Industrial Switch - Built for mission-critical applications
In smart manufacturing, power energy, automotive industry, transportation hubs and other scenarios, our switches have 99.99% communication stability Become the common choice of thousands of enterprises:
"From the Siberian permafrost to the equatorial production line, Unico is always online!" - Unico customer testimonial
04
Technical Parameter Overview
| Features | 8-port model | 5-port model |
|---|---|---|
| Port Configuration | 8×RJ45 | 5×RJ45 |
| Input Voltage | DC12/24/48V (12-50V) | DC12/24/48V (12-50V) |
| Maximum Power Consumption | 1.63W | 1.15W |
| Operating Temperature | -45℃ ~ +75℃ | -45℃ ~ +75℃ |
05
Three Reasons to Choose Unico
★ Wuhan Manufacturing Gene ——Local R&D team responds quickly to needs
★ Military-grade Quality ——72-hour high and low temperature cycle test verification
★ Lifetime Technical Support ——Expert team provides protocol-level debugging support
Follow Unico's official account to learn more
Unico (Wuhan) Industrial Technology Co., Ltd.
Carefully Crafted Industrial Wireless Solutions
📞 Hotline: 027-87865860
🌐 Website: www.unionx.net
📩 Email: unionx@unionx.net
