Detailed introduction

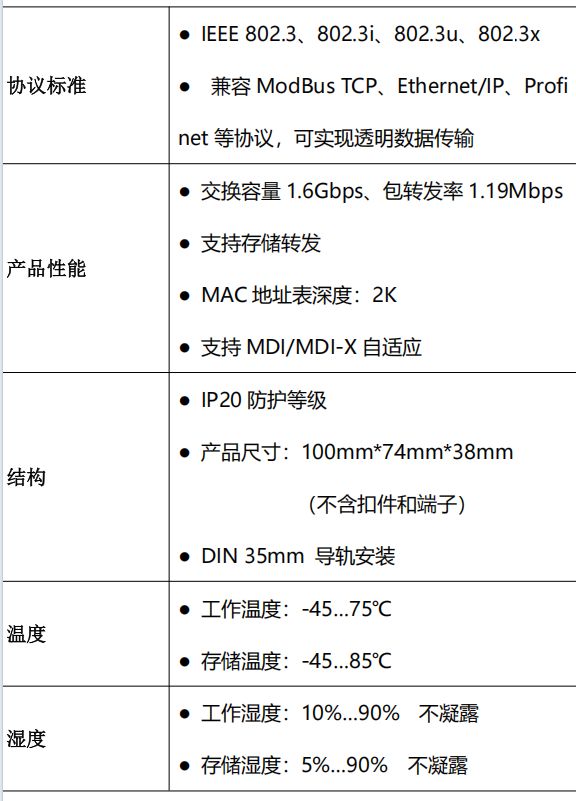

Product Features
● Switching capacity 1.6Gbps, packet forwarding rate 1.19Mpps
● RJ45 port supports 10/100 Mbps transmission speed
● Supports MDI/MDI-X auto-negotiation
● Supports dual redundant DC12V/24V/48V power supply, supports reverse polarity protection
● Supports half-duplex, full-duplex, and auto-negotiation modes
● Compatible with ModBus TCP, Ethernet/IP, Profinet and other protocols, enabling transparent data transmission
● Supports PROFINET-RT, enabling reliable real-time data exchange on the PROFINET network
Number of Ports
● 8 ports
Power Supply
● Input voltage DC12V/24V/48V (12V-50V DC)
● Input current 0.14A (MAX)
● Supports reverse polarity protection
Maximum Power
● 1.63W
Protection Level
IP20
Product Dimensions
● 110mm*74mm*38mm (excluding fasteners and terminals)
● DIN 35mm rail mounting
Ambient Temperature and Humidity
● Operating temperature: -45…75℃
● Storage temperature: -45…85℃
● Operating humidity: 10%…90% Non-condensing
● Storage humidity: 5%…90% Non-condensing
