5-port industrial switch

Category：

Industrial switch

Order No：

6210666

5-port switch with a switching capacity of 1.6 Gbps and a packet forwarding rate of 1.19 Mpps. Supports dual-redundant DC12V/24V/48V power supply, and includes reverse-polarity protection.

inquiry

Detailed introduction

Product Features

● Switching capacity: 1.6 Gbps, packet forwarding rate: 1.19 Mpps

● The RJ45 port supports transmission speeds of 10/100 Mbps

● Supports MDI/MDI-X auto-adaptation

● Supports dual redundant DC12V/24V/48V power supply, with reverse polarity protection

● Supports half-duplex, full-duplex, and auto-negotiation modes

● Compatible with protocols such as ModBus TCP, Ethernet/IP, and Profinet, enabling seamless data transmission.

● Supports PROFINET-RT, enabling reliable real-time data exchange in PROFINET networks

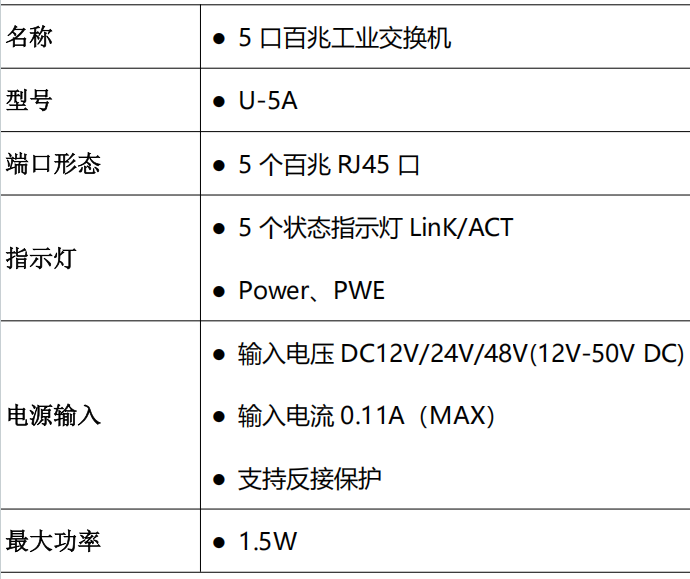

Number of ports

● 5 ports

Power supply

● Input voltage: DC 12V / 24V / 48V (12V–50V DC)

● Input current 0.11A (MAX)

● Supports reverse connection protection

Maximum power

● 1.5W

Protection Level

IP20

Product Dimensions

●90mm x 65mm x 24mm (excluding fasteners and terminals)

● DIN 35mm Rail Mounting

Ambient temperature and humidity

● Operating temperature: -45…75°C

● Storage temperature: -45…85°C

● Operating humidity: 10%…90%, non-condensing

● Storage humidity: 5%…90%, non-condensing
